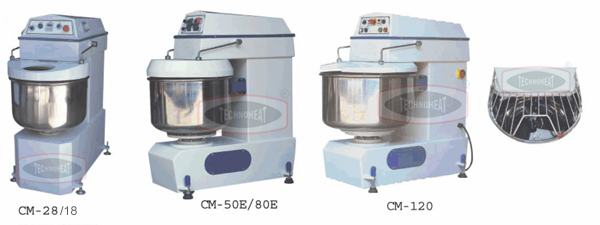

Spiral Mixer
Products / Imported Bakery Machinery / Spiral Mixer (Chanmag – Made in Taiwan)
Technical Specifications
| CM 18E | CM 28E | CM 50E | CM 80E | CM 120 | ||
|---|---|---|---|---|---|---|
| Flour Capacity | KG | 10 | 15 | 30 | 50 | 75 |
| Dough Capacity | KG | 18 | 28 | 50 | 80 | 120 |
| Spiral Hook Motor | KW | 0.75 | 1.875 | 3 | 4.5 | 5.6 |
| Bowl Motor | KW | - | - | 0.57 | 0.75 | 1.1 |
| Bowl Diameter | MM | 435 | 455 | 550 | 670 | 750 |
| Machine Weight | KG | 114 | 185 | 316 | 457 | 508 |
| A | 310 | 496 | 588 | 716 | 810 | |
| Dimensions in mm | B | 780 | 1059 | 1210 | 1257 | 1270 |
| C | 490 | 710 | 716 | 790 | 880 | |
| D | 720 | 824 | 1037 | 1143 |

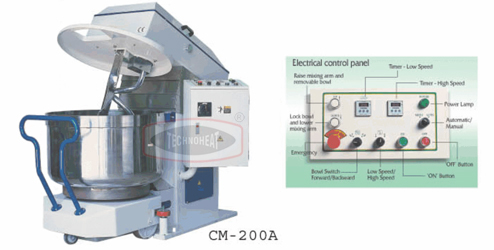

Spiral Mixer With Removable Bowl
Technical Specifications
| CM200A | ||
|---|---|---|
| Flour Capacity | KG | 125 |
| Dough Capacity | KG | 200 |
| Spiral Hook Motor | KW | 11.25 |
| Bowl Motor | KW | 1.1 |
| Hydraulic Pump Motor | KW | 0.38 |
| Bowl Diameter | MM | 875 |
| Bowl Weight | KG | 290 |
| Machine Weight | KG | 1250 |
| A | 1050(1870) | |
| Dimensions in mm | B | 1340(1870) |
| C | 950 | |
| Dimensions in mm | D | 1910 |

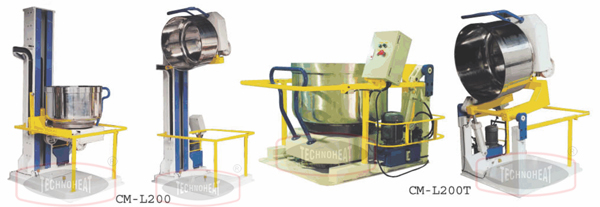

Lifting System/ Tilting system
