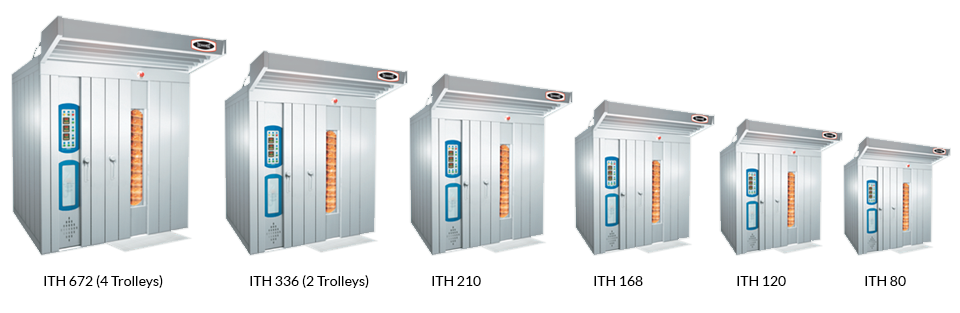

Rotary Rack Oven
Features of Bakery Oven
High out-put -720 loaves per hour.
Low production cost - We have well architected combustion chamber to produce more heat transfer that will results in minimum production cost.
Minimum down time - Externally assembling the moving parts resulting in reducing the break down time.
Easy operation - Simple and easy to operate control panel with all sort of audio visual
Steam system - Efficient steam system which allows desired level of steaming to the products quantity can be to the required level. (option)
Robust construction - The structure of machine is heavy and strong with suitable re-inforcement, managing accessories ensure long hassle free service.
Service backup - For all our customers we have assured life term services and parts are served by our service centre.
Temperature - Maximum up to 300° C
Oven Specification
| Model | Dimension (WxDxH) | Max. Temp | Conncted Load | Weight |
|---|---|---|---|---|
| ITH 840 | 142"(W) x 105"(D) x 95"(H) | 300° C | 6.2Kw (8HP) | 4000 Kg |
| ITH 672 | 119"(W) x 89"(D) x 95"(H) | 300° C | 4.5Kw (6.2HP) | 3000 Kg |
| ITH 336 | 84"(W) x 69"(D) x 95"(H) | 300° C | 2.7Kw (4HP) | 1950 Kg |
| ITH 210 | 77"(W) x 63"(D) x 95"(H) | 300° C | 2.75Kw (4HP) | 1650 Kg |
| ITH 168 | 69"(W) x 55"(D) x 95"(H) | 300° C | 2.75Kw (4HP) | 1400 Kg |
| ITH 120 | 64"(W) x 55"(D) x 87"(H) | 300° C | 1.5Kw (2HP) 3Ph or 1Ph | 1200 Kg |
| ITH 80 | 54"(W) x 40"(D) x 87"(H) | 300° C | 1.5Kw (2HP) 3Ph or 1Ph | 1000 Kg |
Capacity Of The Oven
| Model & Tray Size | Bread 400gm (Approx) | Bun 45gm (Approx) | Dry Rusk (Approx) | Sponge Cake (Approx) | Biscuits (Approx) | Kharis (Approx) |
|---|---|---|---|---|---|---|
| ITH 840 23.5" x 31.5" |
840 Loaves 4 Trolley x 14 Shelves |
2520 Nos 4 Trolleys 72 Trays |
100 to 112 kgs 4 Trolleys 72 Trays |
300 kgs 4 Trolleys 56 Trays |
112 kgs 4 Trolleys 72 Trays |
68 kgs 4 Trolleys 72 Trays |
| ITH 672 19" x 27" |
672 Loaves 4 Trolley x 14 Shelves |
1728 Nos 4 Trolleys 72 Trays |
72 kgs 4 Trolleys 72 Trays |
212 kgs 4 Trolleys 56 Trays |
80 kgs 4 Trolleys 72 Trays |
48 kgs 4 Trolleys 72 Trays |
| ITH 336 19" x 27" |
336 Loaves 2 Trolley x 14 Shelves |
864 Nos 2 Trolleys 36 Trays |
36 kgs 2 Trolleys 36 Trays |
106 kgs 4 Trolleys 28 Trays |
40 kgs 2 Trolleys 36 Trays |
24 kgs 2 Trolleys 36 Trays |
| ITH 210 23.5" x 31.5" |
210 Loaves 1 Trolley x 14 Shelves |
630 Nos 1 Trolleys 18 Trays |
25 to 28 kgs 1 Trolleys 18 Trays |
75 kgs 1Trolleys 14 Trays |
28 kgs 1 Trolley 18 Trays |
17 kgs 1 Trolleys 18 Trays |
| ITH 168 19" x 27" |
168 Loaves 1 Trolley x 16Shelves |
432 Nos 1Trolley 18 Trays |
18 to 20 kgs 1Trolley 18 Trays |
53 kgs 1Trolley 14 Trays |
20 kgs 1Trolley 18 Trays |
12 kgs 1Trolley 18 Trays |
| ITH 120 19" x 27" |
120 Loaves 1 Trolley x 10 Shelves |
336 Nos 1 Trolleys 16 Trays |
13 to 14 kgs 1 Trolley 16 Trays |
38 kgs 1Trolley 16 Trays |
15 to 16 kgs 1 Trolley 16 Trays |
9 kgs 1 Trolley 16 Trays |
| ITH 80 18" x 18" |
80 Loaves 1 Trolley x 10 Shelves |
224 Nos 1 Trolleys 14 Trays |
9.5 kgs 1 Trolley 14 Trays |
19 kgs 1 Trolley 10 Trays |
9 to 10 kgs 1 Trolley 14 Trays |
7 kgs 1 Trolley 14 Trays |
